Introduction:

UGOOD has rich experience and many successful cases in the field of flour processing, and is one of the leaders in this field. We understand every detail of our customers' needs. It is our greatest wish to help customers achieve commercial success by providing reasonable customized flour solutions.

The process can be flexibly adjusted according to customer needs.

Equipment operation is reliable, stable and low cost.

Precleaning:

After harvesting, the raw wheat will be mixed with some large impurities such as straw, rope ends, bricks, and mud. Such large impurities will damage the processing equipment or block pipelines. Therefore, we do a preliminary cleaning of these impurities before the wheat goes into storage.

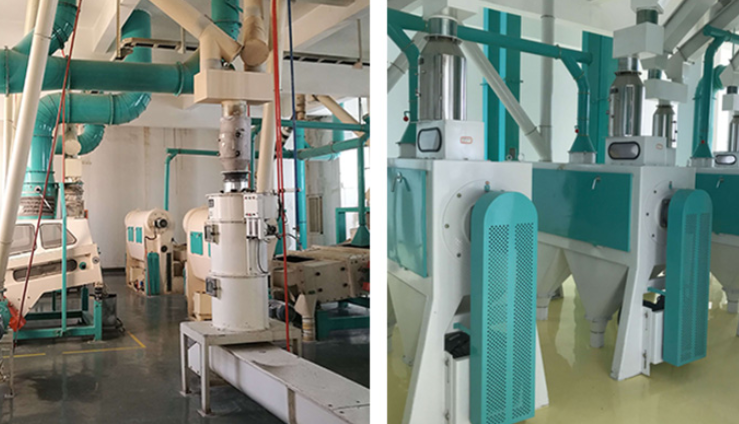

Cleaning:

The impurities contained in the preliminarily cleaned wheat need to be further removed from temporary storage before entering the milling process to ensure the quality of the flour and the life of the processing equipment. This section always adopts screening, winnowing, magnetic selection, stone removal, wheat threshing, color sorting and other methods.

Features of this section:

1. Combine a variety of cleaning methods to remove impurities to the maximum extent.

2. The equipment is easy to operate.

3. Low power consumption, good sealing, and dust does not spread out.

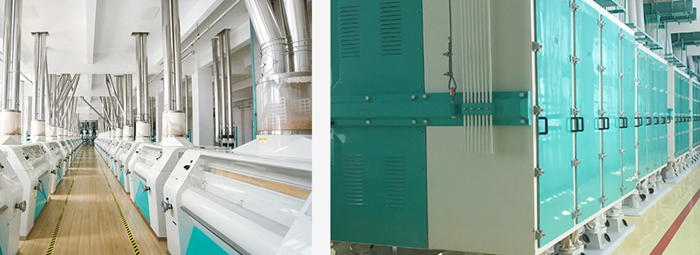

Flour milling:

The purpose of flour milling is to process the wheat that has been cleaned and conditioned by moisture into wheat flour suitable for different needs through mechanical action, and to separate by-products at the same time, including grinding, impact, powder cleaning and sieving. The key to grain flour milling lies in the mill. After conditioning, the grains have achieved ideal grinding characteristics. Through our mills, the various parts of the grain particles can be well separated under the premise of ensuring quality. Our flour milling technology can be widely used in a variety of grains.

Features of this process:

High product quality and yield, low power consumption.

The skin grinding system extracts a large amount of high-quality coarse grains and coarse powder, and tries to ensure the integrity of the bran.

Pay attention to the use of the powder purifier, improve the purity of the core grinding material, and ensure the yield of high-quality flour.

Post-processing:

After the grains are processed into flour, they need to be post-processed, including the collection and blending of wheat flour, bulk storage, weighing, pest control, addition of trace elements, and nutritional fortification of wheat flour. Setting up wheat post-processing can stabilize and improve the quality of wheat flour and increase the variety of wheat flour. We can provide targeted solutions according to the market needs of customers.

Features of this section:

Plan pneumatic conveying pipelines to reduce power consumption.

Specialized flour for different purposes can be configured according to customer requirements.

Packaging:

We can produce packaging scales of different specifications according to the requirements of the customer market.

They have the features of high precision and high degree of automation.

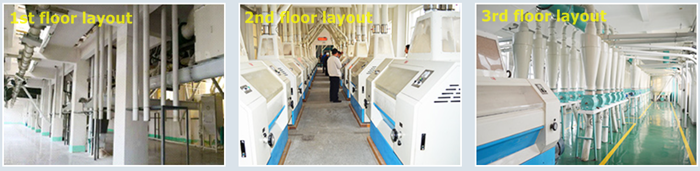

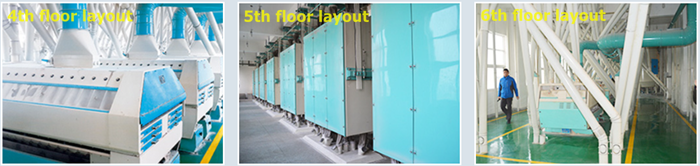

Complete flour milling project with building structure:

The main body of the workshop is divided into two forms: concrete structure and steel structure, usually with four, five and six floors, which are determined according to the processing output and the specific requirements of the user.

Concrete structure building type:

The mainstream form of large and medium-sized complete set projects;

Small vibration, low noise, and stronger overall structure;

Flexible process flow for different finished products, neat appearance;

Easy to operate and use, long service life.

All-steel structure building type:

Relatively low cost;

Fast construction speed, can be moved as a whole, and high utilization value.

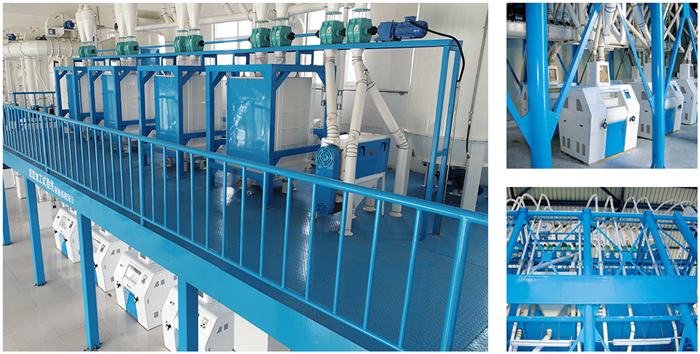

Steel frame structure complete flour milling project:

This project is a complete set of flour milling equipment with a steel frame structure installed in the factory, usually with two or three layers of steel frames. This is customized and developed by our technicians for small and medium-sized flour processing customers.

Features:

Low cost and investment for factory construction;

Small footprint and short construction period;

Extensive use of smooth rollers to produce high-quality flour;

Can produce flour of different grades.
